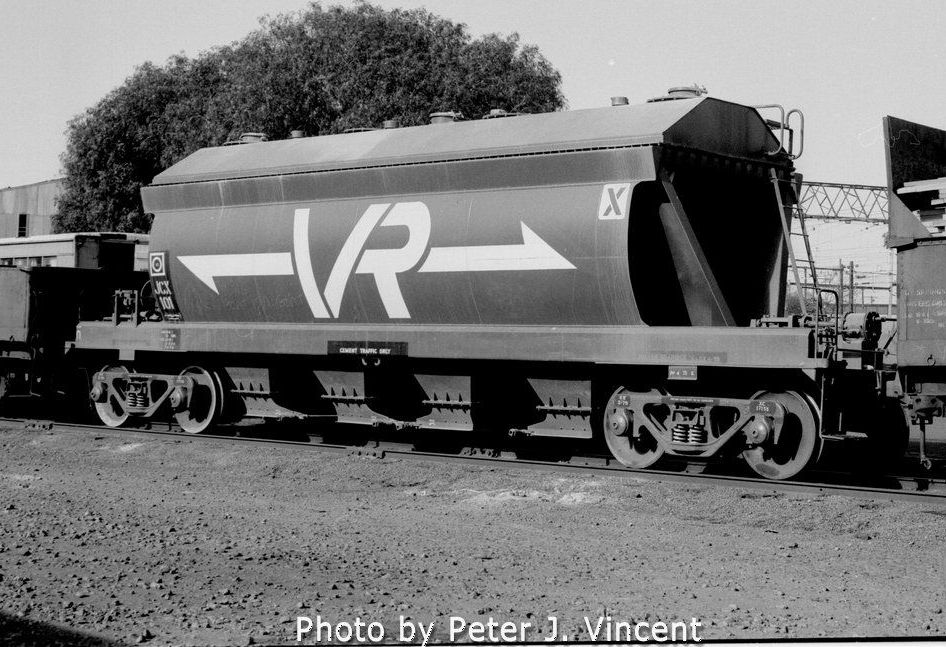

JCX - Bogie Cement Hopper


In 1974, the railways introduced to service a short wheelbase bogie hopper wagon. It was a multi purpose design that featured the ability to have a removable roof and discharge doors to suit traffic changes.

The wagons for cement traffic were coded JCX: J-Bogie hopper, C-Cement, X-Bogie exchange. The number group was 101 - 115.

First built JCX 101 features 'scallopped' ends; all other JCX/JCF vehicles have plain ends.

The class was temporarily code JCF_ before conversion back to JCX in 1978.

The JCX class was recoded to VHCX in the 1979 recoding.

Vehicle history list

   Photos   for  'JCX  '

FileID Description................................................

   AM104 JCX 101, [oPJV]
   B3162 JCX 101, North Geelong Yard, 25/3/1979, [oPJV]
   CF490 JCX 101, Arden Street, 28/4/1978, [oPJV]
   CF555 JCX 101 + JCX 102 - shows different sides/scallopped/part view, Arden Street, 28/4/1978, [oPJV]
   CF491 JCX 101 - e2 profile, Arden Street, 28/4/1978, [oPJV]
   CF556 JCX 102, Arden Street, 28/4/1978, [oPJV]
   B3166 JCX 102, North Geelong Yard, 25/3/1979, [oPJV]
   AM107 JCX 102, [oPJV]
   CF555 JCX 102 + JCX 101 - shows different sides/scallopped, Arden Street, 28/4/1978, [oPJV]
   CF552 JCX 103, Arden Street, 27/4/1978, [oPJV]
   B3163 JCX 105, North Geelong Yard, 25/3/1979, [oPJV]
   CK459 JCX 107 - s1e2c, North Geelong Yard, 12/3/1979, [oPJV]
   B3249 JCX 108, North Geelong Yard, 25/3/1979, [oPJV]
   B3250 JCX 108 - e2p, North Geelong Yard, 25/3/1979, [oPJV]
   B3251 JCX 108 - e2q, North Geelong Yard, 25/3/1979, [oPJV]
   CK434 JCX 108 - s2, North Geelong Yard, 12/3/1979, [oPJV]
   CG131 JCX 108 - s2e1c, 4/1978, [oPJV]
   B3165 JCX 109, North Geelong Yard, 25/3/1979, [oPJV]
   CF500 JCX 109, Arden Street, 28/4/1978, [oPJV]
   CF501 JCX 111, Arden Street, 28/4/1978, [oPJV]
   CU489 JCX 112 - s1p, North Geelong Yard, 12/3/1979, [oPJV]
   CU490 JCX 112 - s1q, North Geelong Yard, 12/3/1979, [oPJV]
   CK433 JCX 113 - s2, North Geelong Yard, 12/3/1979, [oPJV]
   CG132 JCX 115, 4/1978, [oPJV]
   CG133 JCX 115 - lettering panel, 4/1978, [oPJV]
   CU491 JCX 115 - s2p, North Geelong Yard, 12/3/1979, [oPJV]
   CU492 JCX 115 - s2q, North Geelong Yard, 12/3/1979, [oPJV]
   Diagrams   for  'JCX  '

FileID Description................................................

   AS696 JCX - diagram J-7, 4/12/1975, [oPTC]

[ CodeList ] [ Contents ]

File c070m compiled by Peter J. Vincent, updated 17/4/2007
