GH - Fixed Wheel Grain Hopper


The GH wagons were converted from the open _GY_ wagons between 1979 to 1984. About 810 were placed into service

Problems were experienced with underframes cracking with these wagons. The underframes had already been in service for 20 to 40 years.

In 1980, two sets of Gloucester Suspension Units were applied to vehicles GH 155 and GH 336. Tests were conducted to 70mph(115km/hr) but nothing further developed from the experiment. The vehicles are believed to have carried the equipment until scrapped about eight years later.

At this time no scrapping data has been collected. The class was withdrawn from service by the early 1990's. They were replaced by large numbers of bogie grain wagons built in the late 1980's. At the time of their construction they were believed to be a short term measure until finance became available for new bogie vehicles.

Types

There were several types of GH's built. In the main, the differences apparent in later years were due to modifications caried out to improve the design.

GH 1 and 2 were the prototypes, with GH 4 onwards built to a standard 4 door hopper discharge and foldover top hatch.

Great difficulty was experienced in maintaining the brake equipment. To overcome the problem, two wagons were modifed. They had cutout ends at the handbrake end. Two brake arrangements were tried; one on GH 150 and another on GH 151. Brake equipment was tucked in under the slope sheet of the hopper. These changes were not progressed with. Instead, the four hopper discharge was reduced to a two door discharge, thereby gaining clearance for maintenance. To confuse matters, GH's were still issued to service with cutout ends despite instructions to the contrary.

Another parallel modification made was a change to the top hatch design. Initial design was "in sequence flipover" lids and later the two "barrel" hatch evolved.

Most unique was a fibreglass top that fitted directly onto the hopper as a one piece cast. This top was eventually fitted to GH 810.

Vehicle history list

   Photos   for  'GH  '

FileID Description................................................

   DC870 GH - deailed wagons, spilt rice, Goornung, c1979, [sALT]
   DC789 GH - derailed train, from wagon tops, Goornung, c1979, [sALT]
   DC794 GH - derailed wagons from wagon tops 2, Goornung, c1979, [sALT]
   DC796 GH - derailed wagons off the rails and buried, Goornung, c1979, [sALT]
   DC783 GH - derailed wagons/spilt rice, Goornung, c1979, [oALT]
   DC872 GH - derailed, undergear/brake levers, newspaper article, Goornung, c1979, [sALT]
   DC776 GH - derailment damage, Goornung, c1979, [oALT]
   DC775 GH - derailment photo, Goornung, c1979, [oALT]
   DG442 GH - e2p, 1980s, [oDVC]
   DC791 GH - ends of wagons, derailed, Goornung, c1979, [sALT]
   DC784 GH - GH 461/wagons on side/bent rail, Goornung, c1979, [sALT]
   DC869 GH - newpaper article/kids with wrecked wagons, Goornung, c1979, [sALT]
   CN141 GH - rake in yard, Murtoa, 1970s, [oBAU]
   DC785 GH - rake of wagons in derailment, Goornung, c1979, [sALT]
   DC795 GH - top details of derailed wagons, Goornung, c1979, [sALT]
   DC871 GH - top view of derailment, undergear, newspaper article, Goornung, c1979, [sALT]
   DC787 GH - top/end step detail, derailed wagon, Goornung, c1979, [sALT]
   DC778 GH - undergear, open hatches in derailment, Goornung, c1979, [oALT]
   DC782 GH - undergear/bottom hatches 2, derailment, Goornung, c1979, [oALT]
   DC793 GH - undergear/bottom hatches 3, Goornung, c1979, [sALT]
   DC781 GH - undergear/bottom hatches, derailment, Goornung, c1979, [oALT]
   DC799 GH - undergear/brake levers, derailed wagon, Goornung, c1979, [sALT]
   DC780 GH - wagon on side/spilt rice, derailment, Goornung, c1979, [oALT]
   DC790 GH - wagon tops in derailment, Goornung, c1979, [sALT]
   DC786 GH - wagons derailed, from guards van forward, Goornung, c1979, [sALT]
   DC779 GH - wagons off rails, Goornung, c1979, [oALT]
   BE196 GH - fibreglass top - e2p, Newport Workshops, 5/8/1981, [oPJV]
   BE198 GH - fibreglass top - hatch, walkway, Newport Workshops, 5/8/1981, [oPJV]
   BE195 GH - fibreglass top - p, Newport Workshops, 5/8/1981, [oPJV]
   BE194 GH - fibreglass top - q, Newport Workshops, 5/8/1981, [oPJV]
   BE197 GH - fibreglass top - top view, Newport Workshops, 5/8/1981, [oPJV]
   AL432 GH - frame cracks, [oBAU]
   AA763 GH - Gloucester Suspension Unit, [oPJV]
   BL718 GH - lid frame jig, Bendigo Workshops, 13/4/1980, [oPJV]
   BK711 GH - no lettering a/c paint/lift, Bendigo Workshops, 27/7/1980, [oPJV]
   AF591 GH - proto, 1979, [oPTC]
   AF416 GH - proto brake, [oPTC]
   AF552 GH - proto brake, [oPTC]
   AF551 GH - proto brake, [oPTC]
   AF550 GH - proto brake, [oPTC]
   AF549 GH - proto brake, [oPTC]
   AF547 GH - proto brake, [oPTC]
   AF546 GH - proto brake, [oPTC]
   AF545 GH - proto brake, [oPTC]
   AF536 GH - proto brake, [oPTC]
   AF537 GH - proto brake, [oPTC]
   AF535 GH - proto brake, [oPTC]
   AF417 GH - proto brake, [oPTC]
   AF415 GH - proto brake, [oPTC]
   AF414 GH - proto brake, [oPTC]
   AF407 GH - prototype brake, [oPTC]
   BL596 GH - rake on train, trailing forward, Sunshine, 29/3/1980, [oPJV]
   BL717 GH - roof cover framework, Bendigo Workshops, 13/4/1980, [oPJV]
   BV130 GH - stripped GY body for conversion, Bendigo Workshops, 23/11/1980, [oPJV]
   CA821 GH - wagons on wheat train/T loco, c1984, [oREW]
   BO127 GH - wagons on wheat train; A 62 + T 379, Broadmeadows, 15/10/1984, [oPJV]
   AL433 GH 1, Echuca, 15/4/1979, [oPJV]
   CA933 GH 1 + GH 2 (near), Echuca, 15/4/1979, [oPJV]
   CA932 GH 1 - 1N2 s2e2, Echuca, 15/4/1979, [oPJV]
   BP322 GH 1 - 1N2, top view, North Geelong Yard, 17/8/1980, [oPJV]
   CA926 GH 1 - detail: thick cracked paint over superphosphate?, Echuca, 15/4/1979, [oPJV]
   CA925 GH 1 - e1q, Echuca, 15/4/1979, [oPJV]
   CA937 GH 1 - e1q, Echuca, 15/4/1979, [oPJV]
   BW467 GH 1 - end roof step/inset, Echuca, 15/4/1979, [oPJV]
   BW468 GH 1 - end steps/e2, Echuca, 15/4/1979, [oPJV]
   CA936 GH 1 - lettering/axle/door, Echuca, 15/4/1979, [oPJV]
   CA939 GH 1 - lettering/handbrake, Echuca, 15/4/1979, [oPJV]
   CA924 GH 1 - s1 1N2, Echuca, 15/4/1979, [oPJV]
   CN010 GH 1 - s2e1, 1N2, 1970s, [oBAU]
   BW464 GH 1 - top, part view GJF top, Echuca, 15/4/1979, [oPJV]
   BW452 GH 1 - top, with GH 2 top, Echuca, 15/4/1979, [oPJV]
   AL442 GH 2, Echuca, 15/4/1979, [oPJV]
   CA933 GH 2 + GH 1, Echuca, 15/4/1979, [oPJV]
   CA931 GH 2 - 1N2 s2e2c, Echuca, 15/4/1979, [oPJV]
   BR782 GH 2 - 2N2, Echuca, 23/11/1980, [oPJV]
   CA934 GH 2 - e2p, Echuca, 15/4/1979, [oPJV]
   CA935 GH 2 - e2q, Echuca, 15/4/1979, [oPJV]
   CA938 GH 2 - lettering/handbrake, Echuca, 15/4/1979, [oPJV]
   CA927 GH 2 - s1e2c, Echuca, 15/4/1979, [oPJV]
   BW446 GH 2 - s1e2c, Echuca, 15/4/1979, [oPJV]
   BW460 GH 2 - top, Echuca, 15/4/1979, [oPJV]
   BW452 GH 2 - top, 2nd wagon, Echuca, 15/4/1979, [oPJV]
   BF991 GH 4 - s1e2, 1n1, North Melbourne C&W Shops, 30/9/1981, [oPJV]
   BL531 GH 10 - part view 2C2, Sunshine, 29/3/1980, [oPJV]
   BL748 GH 11 - s1, 2N2, Echuca, 13/4/1980, [oPJV]
   BP266 GH 12 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   DT062 GH 14 - 1N1, North Geelong Yard, 21/9/1980, [oPJV]
   BM415 GH 15 - s2e1c, 2N2, Echuca, 11/5/1980, [oPJV]
   BV006 GH 16 - 2N2, Echuca, 23/11/1980, [oPJV]
   BV159 GH 19 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BG070 GH 20 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BU985 GH 23 - 2N2, Elmore, 23/11/1980, [oPJV]
   BP237 GH 25 - 1N1, North Geelong Yard, 17/8/1980, [oPJV]
   BF816 GH 27 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BL745 GH 28 - e2p, Echuca, 13/4/1980, [oPJV]
   BL746 GH 28 - e2q, Echuca, 13/4/1980, [oPJV]
   BL744 GH 28 - s1e2c, 2N2, Echuca, 13/4/1980, [oPJV]
   BO781 GH 29 - s2e1, North Geelong Yard, 5/9/1982, [oPJV]
   BP373 GH 32 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BI628 GH 33 - s2 1N1, 19/4/1983, [oPJV]
   BG029 GH 36 - s2e1, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BL750 GH 41 - s1, 2N2, Echuca, 13/4/1980, [oPJV]
   BL742 GH 43 - s2e1, 2N2, Echuca, 13/4/1980, [oPJV]
   BG088 GH 46 - s2e1, 2n2, North Geelong Yard, 27/9/1981, [oPJV]
   BY623 GH 47 - -N2, North Geelong Yard, 21/9/1980, [oPJV]
   BP298 GH 47 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BR807 GH 49 - 1N1, Shepparton, 23/11/1980, [oPJV]
   BV154 GH 53 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BM078 GH 54 - 2N2, s1e2, Tottenham Yard, 20/4/1980, [oPJV]
   BV162 GH 55 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BM454 GH 58 - s2, 2N2, Echuca, 11/5/1980, [oPJV]
   BN883 GH 59 - s2e1, 1N1, Pakenham, 11/2/1982, [oPJV]
   BT634 GH 60 - 2N2, North Geelong Yard, 9/11/1980, [oPJV]
   DC788 GH 62 - part view, derailed, Goornung, c1979, [sALT]
   BG200 GH 64 - s1e1c, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BR746 GH 66 - 2N2, Echuca, 23/11/1980, [oPJV]
   BV010 GH 66 - 2N2, Echuca, 23/11/1980, [oPJV]
   BX837 GH 70 - -N2, North Geelong Yard, 21/9/1980, [oPJV]
   BV009 GH 71 - 2N2, Echuca, 23/11/1980, [oPJV]
   BP334 GH 73 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BV008 GH 76 - 2N2, Echuca, 23/11/1980, [oPJV]
   BV160 GH 77 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   AA184 GH 83 - 1N1, Newport Workshops, c1981, [oPJV]
   BK716 GH 84 - 2N-, bottom doors removed, Bendigo Workshops, 27/7/1980, [oPJV]
   BT642 GH 85 - 2N2, North Geelong Yard, 9/11/1980, [oPJV]
   BR771 GH 86 - 1N1, Echuca, 23/11/1980, [oPJV]
   BL753 GH 86 - s2, 2N2, Echuca, 13/4/1980, [oPJV]
   BU984 GH 89 - 2N2, Elmore, 23/11/1980, [oPJV]
   BV168 GH 92 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BP296 GH 92 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BL751 GH 93 - s1, -N2, Echuca, 13/4/1980, [oPJV]
   BR775 GH 95 - 2N2, Echuca, 23/11/1980, [oPJV]
   BK710 GH 96 - 1N1, Bendigo Workshops, 27/7/1980, [oPJV]
   BK712 GH 96 - s2, top, Bendigo Workshops, 27/7/1980, [oPJV]
   BX765 GH 97 - -N2, North Geelong Yard, 21/9/1980, [oPJV]
   BL731 GH 97 - s2p, 2N2, Echuca, 13/4/1980, [oPJV]
   BL732 GH 97 - s2q, 2N2, Echuca, 13/4/1980, [oPJV]
   BL813 GH 97 - top/roof/id, Echuca, 13/4/1980, [oPJV]
   BR787 GH 100 - 2N2, Echuca, 23/11/1980, [oPJV]
   BB596 GH 101 - s2e1, -n2, Tottenham Yard, 29/3/1981, [oPJV]
   DS187 GH 102 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BL749 GH 104 - s2, 2N2, Echuca, 13/4/1980, [oPJV]
   BT635 GH 109 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BL747 GH 110 - s1, 2N2, Echuca, 13/4/1980, [oPJV]
   BG080 GH 110 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BY873 GH 111 - 2N2, North Geelong Yard, 31/8/1980, [oPJV]
   BV143 GH 114 - -N1, Geelong Loco, 9/11/1980, [oPJV]
   BR780 GH 115 - 1N1, Echuca, 23/11/1980, [oPJV]
   BG082 GH 122 - s1e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BL733 GH 123 - s2, 2N2, Echuca, 13/4/1980, [oPJV]
   BL814 GH 123 - top/roof/id, Echuca, 13/4/1980, [oPJV]
   BY002 GH 129 - 2N2, North Geelong Yard, 21/9/1980, [oPJV]
   BR762 GH 130 - 2N2, Echuca, 23/11/1980, [oPJV]
   BR767 GH 132 - 2N2, Echuca, 23/11/1980, [oPJV]
   BM451 GH 136 - s2, 2N2, Echuca, 11/5/1980, [oPJV]
   BV181 GH 140 - 2N2, Tottenham Yard, 9/11/1980, [oPJV]
   BL756 GH 142 - s2, 2N2, Echuca, 13/4/1980, [oPJV]
   BE609 GH 144 - e2p, Shepparton, 16/8/1981, [oPJV]
   BE610 GH 144 - long top hatch, Shepparton, 16/8/1981, [oPJV]
   BE608 GH 144 - s1e2, 1n1, Shepparton, 16/8/1981, [oPJV]
   BM309 GH 148 - s1e1, 2N2, North Melbourne C&W, 20/5/1980, [oPJV]
   BL493 GH 149 - part view 2N2, Sunshine, 29/3/1980, [oPJV]
   CJ098 GH 150 - cutout/lettering/transverse brake cylinder test, Bendigo Workshops, c1979, [oPTC]
   AL436 GH 150 - end cutout detail, [oPTC]
   AF548 GH 150 - proto brake, [oPTC]
   DT227 GH 151 - 1C1 s2e1, North Geelong Yard, 21/9/1980, [oPJV]
   BX728 GH 151 - cutout deck detail 1, North Geelong Yard, 21/9/1980, [oPJV]
   BY059 GH 151 - cutout deck detail 2, North Geelong Yard, 21/9/1980, [oPJV]
   CJ099 GH 151 - cutout/brake cylinder longitudinal, Bendigo Workshops, c1979, [oPTC]
   AL438 GH 151 - end cutout detail, [oPTC]
   AF534 GH 151 - proto brake, [oPTC]
   BG071 GH 151 - s1e2, 1c1, North Geelong Yard, 27/9/1981, [oPJV]
   BP359 GH 153 - 1N2, North Geelong Yard, 17/8/1980, [oPJV]
   DK650 GH 155 - fitted Gloucester Suspension Units, North Geelong, 21/9/1980, [oPJV]
   AL440 GH 155 - Gloucester suspension units, North Geelong Yard, 21/9/1980, [oPJV]
   DS148 GH 155 - GSU, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BV164 GH 157 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BR747 GH 162 - 1N1, Echuca, 23/11/1980, [oPJV]
   BR748 GH 164 - 1N1, Echuca, 23/11/1980, [oPJV]
   BR757 GH 169 - 1N1, Echuca, 23/11/1980, [oPJV]
   BR781 GH 170 - 1N1, Echuca, 23/11/1980, [oPJV]
   BV189 GH 172 - 1N2, Tottenham Yard, 9/11/1980, [oPJV]
   DC792 GH 172 - part view, derailed, Goornung, c1979, [sALT]
   BL739 GH 176 - s1, 1N2, Echuca, 13/4/1980, [oPJV]
   BL740 GH 176 - s1p, Echuca, 13/4/1980, [oPJV]
   BL738 GH 176 - s1q, 1N2, Echuca, 13/4/1980, [oPJV]
   BV142 GH 177 - 1N1, Geelong Loco, 9/11/1980, [oPJV]
   BU983 GH 179 - 1N1, Elmore, 23/11/1980, [oPJV]
   BM447 GH 180 - s1, 1N2, Echuca, 11/5/1980, [oPJV]
   BR784 GH 181 - 1N1, Echuca, 23/11/1980, [oPJV]
   BP513 GH 181 - 1N2, Bendigo, 27/7/1980, [oPJV]
   BG022 GH 184 - s1e2, 1n2, Tottenham Yard, 13/9/1981, [oPJV]
   BP515 GH 185 - 1N2, Bendigo, 27/7/1980, [oPJV]
   BV004 GH 190 - 1C1, Echuca, 23/11/1980, [oPJV]
   BP539 GH 190 - 1C2, Bendigo, 27/7/1980, [oPJV]

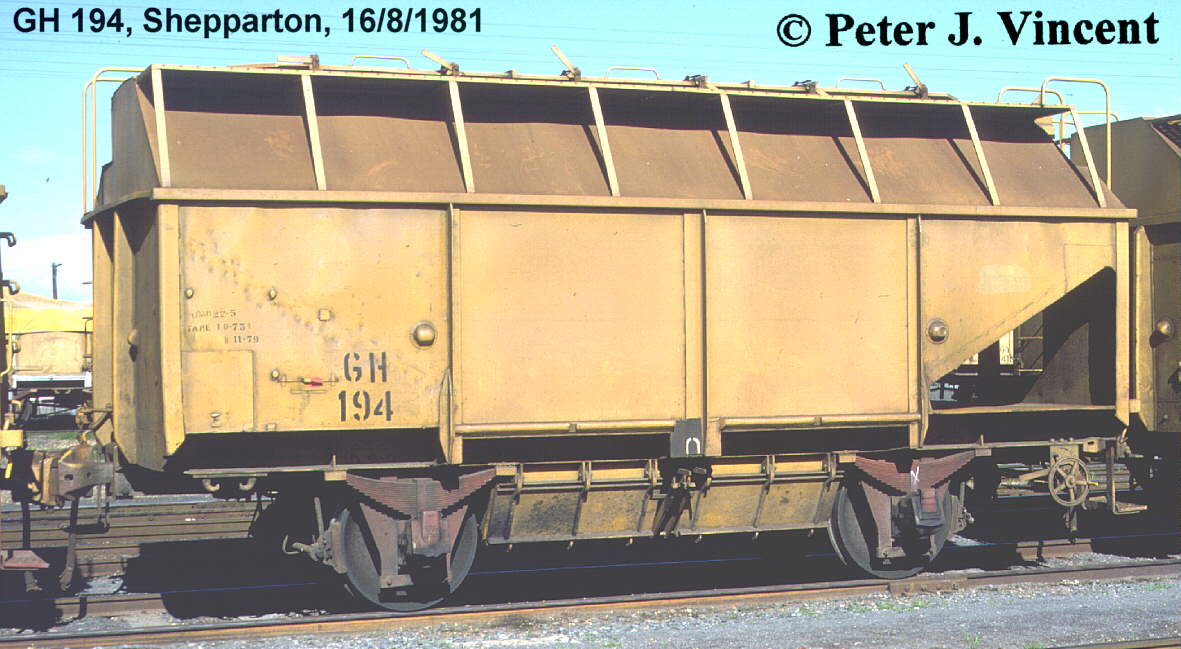

   AL441 GH 194, Shepparton, 16/8/1981, [oPJV]
   BL754 GH 194 - s1, 1C2, Echuca, 13/4/1980, [oPJV]
   BM453 GH 199 - s1, 1C2, Echuca, 11/5/1980, [oPJV]
   BY642 GH 201 - 1C1, North Geelong Yard, 21/9/1980, [oPJV]
   DR662 GH 205 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BR760 GH 207 - 2N2, Echuca, 23/11/1980, [oPJV]
   BR763 GH 212 - 2C2, Echuca, 23/11/1980, [oPJV]
   AD231 GH 212 - cutout, 1979, [oDXH]
   BV007 GH 214 - 1C1, Echuca, 23/11/1980, [oPJV]
   BP511 GH 214 - 2C2, Bendigo, 27/7/1980, [oPJV]
   DG443 GH 215 - part view, -N1, s2p, 1980s, [oDVC]
   BL530 GH 216 - part view 2N2, Sunshine, 29/3/1980, [oPJV]
   BR766 GH 217 - 1N1, Echuca, 23/11/1980, [oPJV]
   BM448 GH 218 - s1, 2N2, Echuca, 11/5/1980, [oPJV]
   BG020 GH 218 - s1e2, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BV182 GH 220 - 1C1, Tottenham Yard, 9/11/1980, [oPJV]
   BM456 GH 220 - s1, 2C2, Echuca, 11/5/1980, [oPJV]
   BR776 GH 221 - 2C2, Echuca, 23/11/1980, [oPJV]
   DT038 GH 222 - 1C1, North Geelong Yard, 21/9/1980, [oPJV]
   BK719 GH 223 - s1, 2C2, Bendigo Workshops, 27/7/1980, [oPJV]
   BG027 GH 224 - s2e1, 2c2, Tottenham Yard, 13/9/1981, [oPJV]
   BP365 GH 225 - 2C2, North Geelong Yard, 17/8/1980, [oPJV]
   BL741 GH 227 - s1e2, 2C2, Echuca, 13/4/1980, [oPJV]
   BP330 GH 235 - 2C2, North Geelong Yard, 17/8/1980, [oPJV]
   BK710 GH 236 - 1C1, Bendigo Workshops, 27/7/1980, [oPJV]
   CN011 GH 236 - s1, 2C2, 1980s, [oBAU]
   BK713 GH 236 - s2, top, Bendigo Workshops, 27/7/1980, [oPJV]
   BG095 GH 237 - s2e1, 2n2, North Geelong Yard, 27/9/1981, [oPJV]
   BD945 GH 239E- s1e2, 1c1, North Geelong, 26/8/1984, [oPJV]
   BM714 GH 242 - s1e2 1C1, North Geelong Yard, 5/9/1982, [oPJV]
   BR764 GH 243 - 1C1, Echuca, 23/11/1980, [oPJV]
   CN012 GH 243 - s2e1, 2C2, 1980s, [oBAU]
   BR761 GH 246 - 2C2, Echuca, 23/11/1980, [oPJV]
   DS923 GH 247 - 2C2, top view/hatches, North Melbourne, 1/9/1980, [oPJV]
   BY667 GH 247 - 2C2, with GY 5804, North Melbourne, 1/9/1980, [oPJV]
   BM443 GH 250 - e1p, cutout, Echuca, 11/5/1980, [oPJV]
   BM444 GH 250 - e1q, cutout, Echuca, 11/5/1980, [oPJV]
   BM446 GH 250 - s2e1, 2C2, Echuca, 11/5/1980, [oPJV]
   BL736 GH 250 - s2q, 2C2, Echuca, 13/4/1980, [oPJV]
   BP504 GH 253 - 2C2, Bendigo, 27/7/1980, [oPJV]
   BL529 GH 254 - s2e1h 2C2, Sunshine, 29/3/1980, [oPJV]
   BT637 GH 256 - 2C2, North Geelong Yard, 9/11/1980, [oPJV]
   BK718 GH 258 - distant, Bendigo Workshops, 27/7/1980, [oPJV]
   BG019 GH 258 - s2e1, 1c1, Tottenham Yard, 13/9/1981, [oPJV]
   BG084 GH 265 - s2e1, 1c1, North Geelong Yard, 27/9/1981, [oPJV]
   BP070 GH 267 - s1e2 1C1, North Geelong Yard, 5/9/1982, [oPJV]
   BV074 GH 268 - -C1, North Geelong Yard, 9/11/1980, [oPJV]
   BM715 GH 269 - s1e2 -C1, North Geelong Yard, 5/9/1982, [oPJV]
   BY712 GH 271 - 2C2, North Geelong Yard, 21/9/1980, [oPJV]
   BK717 GH 272 - 2C2, Bendigo Workshops, 27/7/1980, [oPJV]
   BK718 GH 272 - distant, Bendigo Workshops, 27/7/1980, [oPJV]
   BP295 GH 273 - 2C2, North Geelong Yard, 17/8/1980, [oPJV]
   BE614 GH 273 - s1e2, 1c1, Shepparton, 16/8/1981, [oPJV]
   BV187 GH 274 - 2C2, Tottenham Yard, 9/11/1980, [oPJV]
   BG023 GH 280 - s1e2, 1c1, Tottenham Yard, 13/9/1981, [oPJV]
   BV005 GH 282 - 1C1, Echuca, 23/11/1980, [oPJV]
   BY099 GH 283 - 1C1, North Geelong Yard, 31/8/1980, [oPJV]
   BL735 GH 286 - s2p, 2C2, Echuca, 13/4/1980, [oPJV]
   BL734 GH 286 - s2q, 2C2, Echuca, 13/4/1980, [oPJV]
   BR769 GH 287 - 1C1, Echuca, 23/11/1980, [oPJV]
   BL531 GH 289 - s1e2h 2C2, Sunshine, 29/3/1980, [oPJV]
   BY164 GH 290 - 1C1, North Geelong Yard, 21/9/1980, [oPJV]
   BP297 GH 293 - 1C2, North Geelong Yard, 17/8/1980, [oPJV]
   BP498 GH 294 - part view e1, 1C-, Bendigo, 27/7/1980, [oPJV]
   BV185 GH 297 - 1C1, Tottenham Yard, 9/11/1980, [oPJV]
   BV003 GH 298 - 1C2, Echuca, 23/11/1980, [oPJV]
   BP541 GH 299 - 1C2 s2p, Bendigo, 27/7/1980, [oPJV]
   BP549 GH 299 - 1C2 s2q, Bendigo, 27/7/1980, [oPJV]
   BK692 GH 299 - e2p, Bendigo, 27/7/1980, [oPJV]
   BK693 GH 299 - e2q, Bendigo, 27/7/1980, [oPJV]
   BK694 GH 299 - s1e2, 1C2, Bendigo, 27/7/1980, [oPJV]
   BK695 GH 299 - s1p, Bendigo, 27/7/1980, [oPJV]
   BL594 GH 301 - part view, 1N2, Sunshine, 29/3/1980, [oPJV]
   BL529 GH 302 - part view 1C2, Sunshine, 29/3/1980, [oPJV]
   BR770 GH 303 - 1C2, Echuca, 23/11/1980, [oPJV]
   BL729 GH 304 - s1e2, 1C2, Echuca, 13/4/1980, [oPJV]
   BL730 GH 304 - s1p, 1C2, Echuca, 13/4/1980, [oPJV]
   BL812 GH 304 - top/roof/id, Echuca, 13/4/1980, [oPJV]
   DQ867 GH 305 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BG086 GH 306 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BM452 GH 306 - s2, 2N2, uf#, Echuca, 11/5/1980, [oPJV]
   BY794 GH 309 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BP226 GH 310 - 2N2, Geelong Loco, 17/8/1980, [oPJV]
   BT643 GH 315 - 2N2, North Geelong Yard, 9/11/1980, [oPJV]
   BT551 GH 315 - discharge doors/2 p, North Geelong Yard, 9/11/1980, [oPJV]
   BT644 GH 315 - discharge doors/2 q, North Geelong Yard, 9/11/1980, [oPJV]
   BF818 GH 316 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BL757 GH 317 - s1, 2N2, Echuca, 13/4/1980, [oPJV]
   BV141 GH 321 - 2N2, Geelong Loco, 9/11/1980, [oPJV]
   BR751 GH 324 - 1N1, Echuca, 23/11/1980, [oPJV]
   BP537 GH 324 - 1N2, Bendigo, 27/7/1980, [oPJV]
   BR753 GH 325 - 1N1, Echuca, 23/11/1980, [oPJV]
   BL737 GH 326 - s2q, 2N2, GH326 on underframe, Echuca, 13/4/1980, [oPJV]
   BR788 GH 329 - 1N2, Echuca, 23/11/1980, [oPJV]
   AL445 GH 329 - body as sand hopper - 1, [sPJV]
   AL446 GH 329 - body as sand hopper - 2, [sPJV]
   BT552 GH 331 - 1N2, North Geelong Yard, 9/11/1980, [oPJV]
   BJ113 GH 331 - 1N2, North Geelong Yard, 9/11/1980, [oPJV]
   BV165 GH 332 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BL752 GH 334 - s1, 2N2, Echuca, 13/4/1980, [oPJV]
   AL447 GH 336, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BY430 GH 336 + GH 155, GSU conversion, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BY435 GH 336 - e2p, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BY114 GH 336 - e2q, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BX572 GH 336 - GSU, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BX656 GH 336 - GSU detail, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   DS243 GH 336 - GSU side detail, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   DS862 GH 336 - lettering, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BY510 GH 336 - lettering/GSU, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BU982 GH 338 - 1N2, Elmore, 23/11/1980, [oPJV]
   BU986 GH 338 - e1p, Elmore, 23/11/1980, [oPJV]
   BU987 GH 338 - e1q, Elmore, 23/11/1980, [oPJV]
   BM449 GH 340 - s1, 1N2, uf#, Echuca, 11/5/1980, [oPJV]
   BR790 GH 346 - s2p 1N1, Echuca, 23/11/1980, [oPJV]
   BR789 GH 346 - s2q 1N1, Echuca, 23/11/1980, [oPJV]
   BL595 GH 347 - 1N2, Sunshine, 29/3/1980, [oPJV]
   BM173 GH 349 - -C1, s2e1, Newport Workshops, 2/6/1980, [oPJV]
   DT225 GH 350 - -N1, ready for test, 1 door discharge?, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BX622 GH 350 - e1p, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   DQ829 GH 350 - e1q, North Melbourne C&W Shops, 11/7/1980, [oPJV]
   BY757 GH 350 - green card/test/discharge door?, North Melbourne C&W Shops, 12/7/1980, [oPJV]
   BG078 GH 350 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   DT179 GH 352 - -N2, North Geelong Yard, 21/9/1980, [oPJV]
   BO748 GH 354 - 2N2, doors open, North Geelong Yard, 5/9/1982, [oPJV]
   BO749 GH 354 - door - open/detail, North Geelong Yard, 5/9/1982, [oPJV]
   CN013 GH 355 - 2N2, s2, 1980s, [oBAU]
   BR786 GH 356 - s1p 2N2, Echuca, 23/11/1980, [oPJV]
   BR785 GH 356 - s1q 2N2, Echuca, 23/11/1980, [oPJV]
   BE612 GH 360 - s1e2, 1n1, Shepparton, 16/8/1981, [oPJV]
   BR752 GH 363 - 2N2, Echuca, 23/11/1980, [oPJV]
   BV161 GH 366 - 2N2, North Geelong Yard, 9/11/1980, [oPJV]
   BU996 GH 368 - 1N1, Echuca, 23/11/1980, [oPJV]
   BM455 GH 372 - s1, 2N2, uf#, Echuca, 11/5/1980, [oPJV]
   BO819 GH 374 - s2e1 -N2, North Geelong Yard, 5/9/1982, [oPJV]
   BY827 GH 377 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BL530 GH 378 - 2N2, Sunshine, 29/3/1980, [oPJV]
   BL594 GH 380 - s1h, 2N2, Sunshine, 29/3/1980, [oPJV]
   BL743 GH 381 - s2, 2N2, GH381 on underframe, Echuca, 13/4/1980, [oPJV]
   BP362 GH 382 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BR773 GH 383 - 2N2, Echuca, 23/11/1980, [oPJV]
   BP236 GH 385 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BY391 GH 385 - 2N2, North Geelong Yard, 21/9/1980, [oPJV]
   BG069 GH 387 - s1e2, 2n2, North Geelong Yard, 27/9/1981, [oPJV]
   BY592 GH 388 - 2N2, North Geelong Yard, 21/9/1980, [oPJV]
   BJ115 GH 392 - -N1, North Geelong Yard, 9/11/1980, [oPJV]
   BV002 GH 394 - 2N2, Echuca, 23/11/1980, [oPJV]
   BL755 GH 395 - s2, 2N2, Echuca, 13/4/1980, [oPJV]
   BD946 GH 397 - s2e1, 2n2, North Geelong, 26/8/1984, [oPJV]
   BG025 GH 399 - s2e1, 2n2, Tottenham Yard, 13/9/1981, [oPJV]
   BP338 GH 400 - 2N2, North Geelong Yard, 17/8/1980, [oPJV]
   BP224 GH 401 - 1N1, Geelong Loco, 17/8/1980, [oPJV]
   BP223 GH 404 - 1N1, Geelong Loco, 17/8/1980, [oPJV]
   BG203 GH 409 - part view, Tottenham Yard, 13/9/1981, [oPJV]
   BM676 GH 410 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BX697 GH 412 - -N1, North Geelong Yard, 21/9/1980, [oPJV]
   DS909 GH 412 - lettering: Fix the ..... hole , North Geelong Yard, 21/9/1980, [oPJV]
   BO751 GH 413 - door, single door detail/open, North Geelong Yard, 5/9/1982, [oPJV]
   BO750 GH 413 - s2e1, -N1, North Geelong Yard, 5/9/1982, [oPJV]
   BM450 GH 414 - s2, 2N2, Echuca, 11/5/1980, [oPJV]
   BB597 GH 421 - s2e1, -n1, Tottenham Yard, 29/3/1981, [oPJV]
   BE611 GH 422 - s2e1, 1n1, Shepparton, 16/8/1981, [oPJV]
   BN884 GH 423 - s2e1, -N1, Pakenham, 11/2/1982, [oPJV]
   BV166 GH 424 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BK248 GH 426, Tottenham Yard, 9/11/1980, [oPJV]
   BG092 GH 427 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BT633 GH 429 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BT638 GH 431 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BG077 GH 434 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG030 GH 437 - s2e1, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BI629 GH 439 - s1 1N1, 19/4/1983, [oPJV]
   BB595 GH 439 - s1e2, -n1, Tottenham Yard, 29/3/1981, [oPJV]
   BJ114 GH 440 - -N1, North Geelong Yard, 9/11/1980, [oPJV]
   BV156 GH 446 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BY252 GH 448 - 1N1, North Geelong Yard, 21/9/1980, [oPJV]
   BV163 GH 450 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BT546 GH 452 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BG076 GH 453 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BV073 GH 454 - -N1, North Geelong Yard, 9/11/1980, [oPJV]
   BG028 GH 456 - s2e1, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   AW998 GH 459 - LH, 2 door, s1, Arden St, 10/6/1983, [oPJV]
   BG021 GH 460 - s1e2, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BV158 GH 461 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   DC798 GH 461 - lettering, derail wagon, Goornung, c1979, [sALT]
   DC797 GH 461 - part view, derailed wagons, Goornung, c1979, [sALT]
   DC777 GH 461 - part view, derailment, Goornung, c1979, [oALT]
   BV157 GH 464 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BO747 GH 466 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BO820 GH 466 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BG075 GH 472 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG072 GH 476 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BO831 GH 478 - s1e2, 1N1, North Melbourne C&W, 14/7/1982, [oPJV]
   BT548 GH 481 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BK288 GH 483 - 1N1, vandals release doors/wheat discharge on ground, Tottenham Yard, 9/11/1980, [oPJV]
   BT549 GH 484 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BU995 GH 486 - 1N1, Echuca, 23/11/1980, [oPJV]
   BU997 GH 486 - 1N1 s1e2, Echuca, 23/11/1980, [oPJV]
   BG087 GH 488 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BU994 GH 489 - 1N1, Echuca, 23/11/1980, [oPJV]
   BU998 GH 489 - 1N1 s2e2, Echuca, 23/11/1980, [oPJV]
   BI507 GH 491 - s1e2c, 1N1, end damage, Bendigo Workshops, 18/10/1981, [oPJV]
   BG073 GH 492 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BV190 GH 493 - 1N1, Tottenham Yard, 9/11/1980, [oPJV]
   BT640 GH 496 - 1N1, Chenille Lubricator Tests, North Geelong Yard, 9/11/1980, [oPJV]
   BT639 GH 497 - 1N1, Chenille Lubricator Tests, North Geelong Yard, 9/11/1980, [oPJV]
   BT641 GH 497 - lettering: Chenille Lubricator Tests, North Geelong Yard, 9/11/1980, [oPJV]
   BQ153 GH 501 - s2e1 1C1 ( ex 2nd GH 249 ), North Geelong Yard, 5/9/1982, [oPJV]
   BP475 GH 502 - 1N1, Bendigo, 27/7/1980, [oPJV]
   BR778 GH 502 - 1N1, Echuca, 23/11/1980, [oPJV]
   BV188 GH 503 - 1N1, Tottenham Yard, 9/11/1980, [oPJV]
   DT090 GH 510, North Geelong Yard, 21/9/1980, [oPJV]
   DS228 GH 513 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BR772 GH 516 - -N1, Echuca, 23/11/1980, [oPJV]
   DR634 GH 520 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BG093 GH 522 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BM677 GH 523 - s1e2 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   DS823 GH 524 - 1N1, North Geelong Yard, 31/8/1980, [oPJV]
   BV184 GH 525 - 1N1, Tottenham Yard, 9/11/1980, [oPJV]
   BV186 GH 527 - 1N1, Tottenham Yard, 9/11/1980, [oPJV]
   BG026 GH 529 - s2e1, 1n1, Tottenham Yard, 13/9/1981, [oPJV]
   BV183 GH 533 - 1N1, Tottenham Yard, 9/11/1980, [oPJV]
   BV155 GH 534 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   DG441 GH 534 - s1q, 1980s, [oDVC]
   BI505 GH 536 - s2e2c, bent step, 1N1, Bendigo Workshops, 18/10/1981, [oPJV]
   BG081 GH 544 - s1e1c, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG081 GH 548 - part view, North Geelong Yard, 27/9/1981, [oPJV]
   BG094 GH 549 - s1e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG085 GH 550 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG079 GH 551 - s2e1, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   AW997 GH 552 - LH, 2 door, s2, Arden St, 10/6/1983, [oPJV]
   BG090 GH 560 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BG091 GH 561 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BT550 GH 566 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BT636 GH 578 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BT547 GH 579 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BG089 GH 587 - s1e2, 1n1, North Geelong Yard, 27/9/1981, [oPJV]
   BT545 GH 599 - 1N1, North Geelong Yard, 9/11/1980, [oPJV]
   BU955 GH 600 - under construction: end/detail/step, Bendigo Worshops, 23/11/1980, [oPJV]
   BU956 GH 600 - under construction: on trestles, Bendigo Worshops, 23/11/1980, [oPJV]
   BP072 GH 601 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BM678 GH 608 - s1e2 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BO752 GH 626 - s1e2, -N1, North Geelong Yard, 5/9/1982, [oPJV]
   BM712 GH 638 - part view, North Geelong Yard, 5/9/1982, [oPJV]
   BP068 GH 648 - s1e2 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BP071 GH 673 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BP075 GH 676 - s1e2 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BP069 GH 681 - s1e2 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BP073 GH 692 - s1e2 -N1, North Geelong Yard, 5/9/1982, [oPJV]
   BP074 GH 697 - s2e1 1N1, North Geelong Yard, 5/9/1982, [oPJV]
   BI630 GH 791 - s2e2 1N1, 19/4/1983, [oPJV]
   No diagrams found for GH

[ CodeList ] [ Contents ]

File c114m compiled by Peter J. Vincent, updated 14/6/2007
